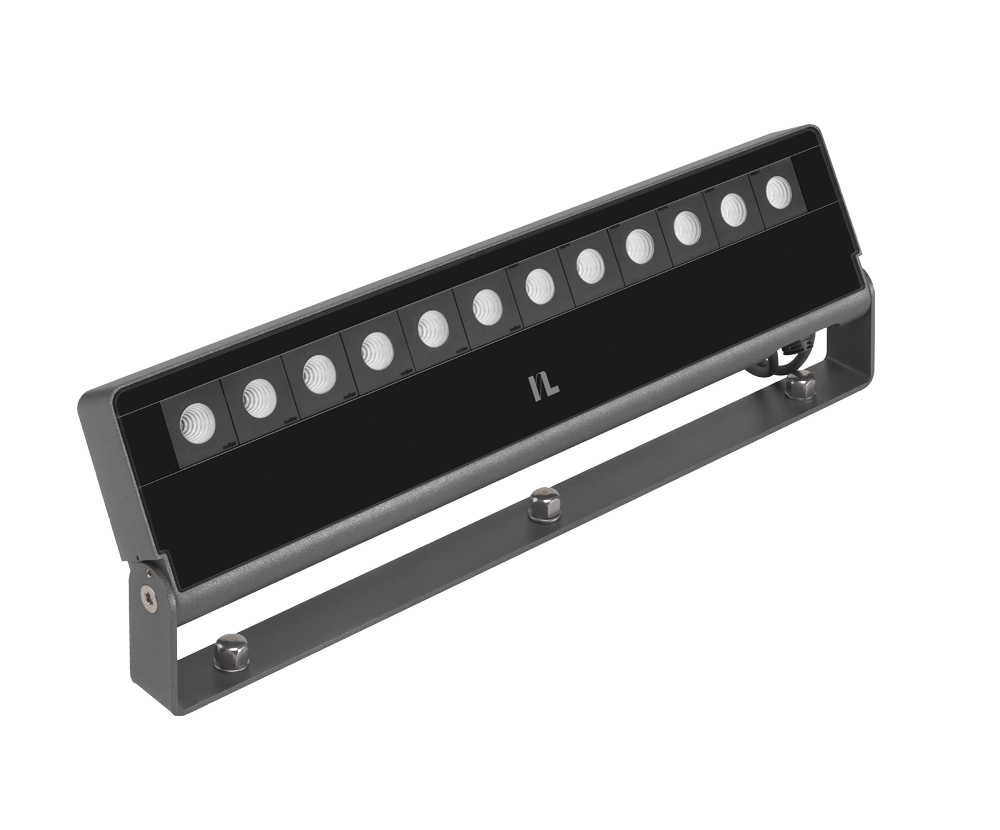

Outdoor spotlight OS4 2x12

The OS4 outdoor spotlight is based on the new »Elements« lighting platform from InstaLighting. OS4 is available in three different sizes and can therefore be used for a large number of areas of application. The aluminum housings, powder-coated in the color »DB703 iron mica«, can be equipped with element light pixels, which allow a free combination of light colors and optics. Each double pixel can be controlled separately, which enables dynamic lighting scenarios for different times of the day, materials and occasions.

properties

lifespan	L80B10 60,000h @ 25 ° C
Ambient temperature	-20 ... + 35 ° C
Storage & transport temperature	-25 ... + 70 ° C
nominal voltage	AC 220 ... 240 V
Nominal frequency	50/60 Hz
Weight	6.5 kg
Wind load	0.12 m²
Housing material	Aluminum, toughened safety glass
Protection class	I.
Protection mode	IP67

Impact resistance	IK10 / IK08
Connection type	free end of line
Color fidelity	SDCM 3
Colour rendering index	typ. 92

Configurations

Product Code	emission angle	Light color	Luminous flux	length	width	height	Control	performance recording
OS4 2x12 DB703 920 SP DA S.	13 °	2200 K	4660 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 920 ME DA S.	30 °	2200 K	4660 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 920 FL DA S.	57 °	2200 K	5300 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 920 WFL DA S.	72 °	2200 K	4660 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 920 WWME DA S.	WWME	2200 K	4130 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 920 WWFL DA S	WWFL	2200 K	4130 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 927 SP DA S.	13 °	2700 K	5910 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 927 ME DA S.	30 °	2700 K	5910 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 927 FL DA S.	57 °	2700 K	6720 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 927 WFL DA S	72 °	2700 K	5910 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 927 WWME DA S.	WWME	2700 K	5240 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 927 WWFL DA S	WWFL	2700 K	5240 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 930 SP DA S.	13 °	3000 K	6160 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 930 ME DA S.	30 °	3000 K	6160 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 930 FL DA S.	57 °	3000 K	7000 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 930 WFL DA S.	72 °	3000 K	6160 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 930 WWME DA S.	WWME	3000 K	5460 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 930 WWFL DA S	WWFL	3000 K	5460 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 940 SP DA S.	13 °	4000 K	6650 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 940 ME DA S.	30 °	4000 K	6650 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 940 FL DA S.	57 °	4000 K	7560 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 940 WFL DA S	72 °	4000 K	6650 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 940 WWME DA S.	WWME	4000 K	5900 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 940 WWFL DA S	WWFL	4000 K	5900 lm	550 mm	40 mm	245 mm	DALI	93 W
OS4 2x12 DB703 TW SP DA S	13 °	TW (2200 ... 5700 K)	6650 lm	550 mm	40 mm	245 mm	DALI dt8	95 W
OS4 2x12 DB703 TW ME DA S	30 °	TW (2200 ... 5700 K)	6650 lm	550 mm	40 mm	245 mm	DALI dt8	95 W
OS4 2x12 DB703 TW FL DA S.	57 °	TW (2200 ... 5700 K)	7560 lm	550 mm	40 mm	245 mm	DALI dt8	95 W
OS4 2x12 DB703 TW WFL DA S	72 °	TW (2200 ... 5700 K)	6650 lm	550 mm	40 mm	245 mm	DALI dt8	95 W
OS4 2x12 DB703 TW WWME DA S	WWME	TW (2200 ... 5700 K)	5900 lm	550 mm	40 mm	245 mm	DALI dt8	95 W
OS4 2x12 DB703 TW WWFL DA S	WWFL	TW (2200 ... 5700 K)	5900 lm	550 mm	40 mm	245 mm	DALI dt8	95 W
OS4 2x12 DB703 TW SP DX S	13 °	TW (2200 ... 5700 K)	3850 lm	550 mm	40 mm	245 mm	DMX-RDM	96 W
OS4 2x12 DB703 TW ME DX S	30 °	TW (2200 ... 5700 K)	3850 lm	550 mm	40 mm	245 mm	DMX-RDM	96 W
OS4 2x12 DB703 TW FL DX S	57 °	TW (2200 ... 5700 K)	2130 lm	550 mm	40 mm	245 mm	DMX-RDM	96 W
OS4 2x12 DB703 TW WFL DX S	72 °	TW (2200 ... 5700 K)	3200 lm	550 mm	40 mm	245 mm	DMX-RDM	96 W
OS4 2x12 DB703 TW WWME DX S	WWME	TW (2200 ... 5700 K)	2890 lm	550 mm	40 mm	245 mm	DMX-RDM	96 W
OS4 2x12 DB703 RGB SP DX S	13 °	RGB	1900 lm (white)	550 mm	40 mm	245 mm	DMX	96 W
OS4 2x12 DB703 RGB ME DX S	30 °	RGB	1900 lm (white)	550 mm	40 mm	245 mm	DMX	96 W
OS4 2x12 DB703 RGB FL DX S	57 °	RGB	1840 lm (white)	550 mm	40 mm	245 mm	DMX	96 W
OS4 2x12 DB703 RGB WFL DX S	72 °	RGB	2200 lm (white)	550 mm	40 mm	245 mm	DMX	96 W
OS4 2x12 DB703 RGB WWME DX S	WWME	RGB	1270 lm (white)	550 mm	40 mm	245 mm	DMX	96 W

Further products

Compact outdoor spotlight in a form-fitting die-cast aluminium housing. Glare-free lighting technology based on InstaLighting technology platform Elements®. Efficient and low-loss light distribution thanks to microreflectors.

Suitable for various indoor and outdoor lighting tasks. Luminaire can be continuously swivelled through 180°, tilt angle fixed using clamping screws. Corrosion-resistant die-cast aluminium housing, cover pane made of positively bonded, anti-reflective single-pane safety glass with all-round black ceramic screen printing.

Connection via 5-pole cable (N/L/PE/2xDALI), permanently connected, free cable end, length: 100cm
