instalight 4010 DB

instalight 4010 DB

Light line instalight 4010 DB

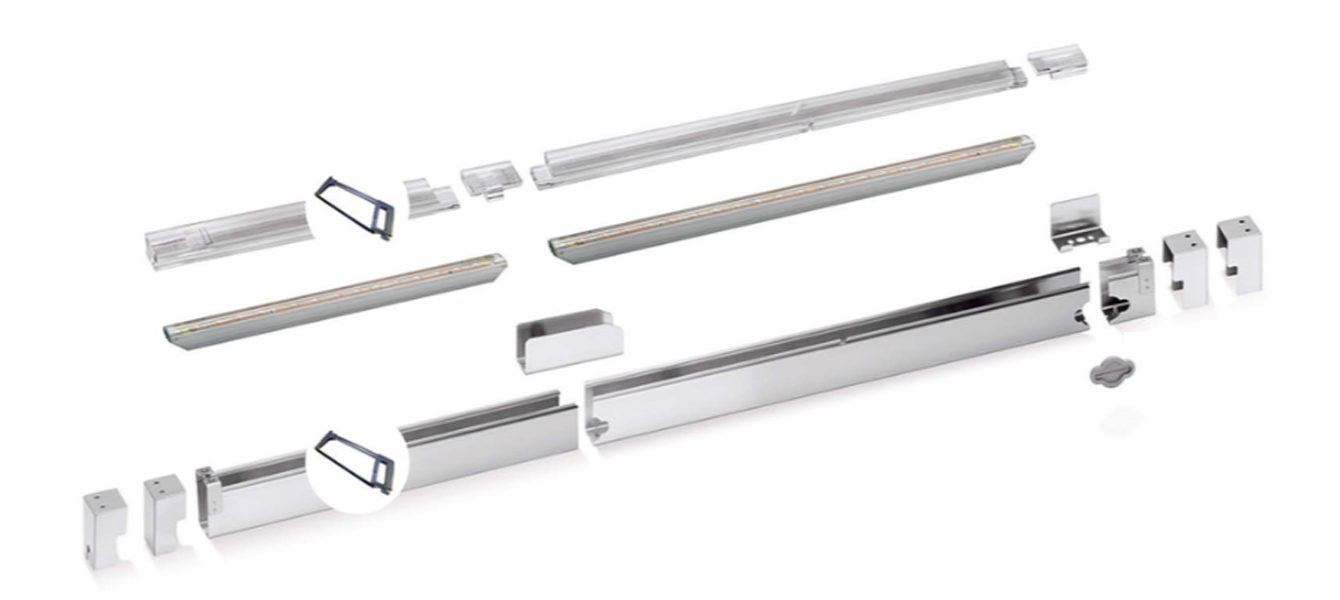

The LED linear system with narrow-beam optics serves as an optimal tool for targeted building accentuation. Mechanically reduced to a minimum of material, the LED light line emphasises the architectural character of the building, but when switched off it fades almost invisibly into the background.
Depending on the installation situation, the facade profile can be precisely adjusted to the desired length. The information here is therefore to be understood as meter information.

properties

lifespan L80B10 60,000h @ 25 ° C
Ambient temperature -20 ... + 45 ° C
Storage & transport temperature -25 ... + 70 ° C
nominal voltage DC 28 V
Weight 2.2 kg
Housing material Stainless steel V4A
Protection class III
Protection mode IP66
Impact resistance IK10
Color fidelity SDCM 3
Colour rendering index typ. 85

Configurations

Product Codeemission
angle
Light colorLuminous fluxlengthwidthheightControlperformance
recording
il 4010 LS DB 840
+/- 5 °
4000 K
875 lm / m1000 mm40 mm60 mmOn off16 W / m
