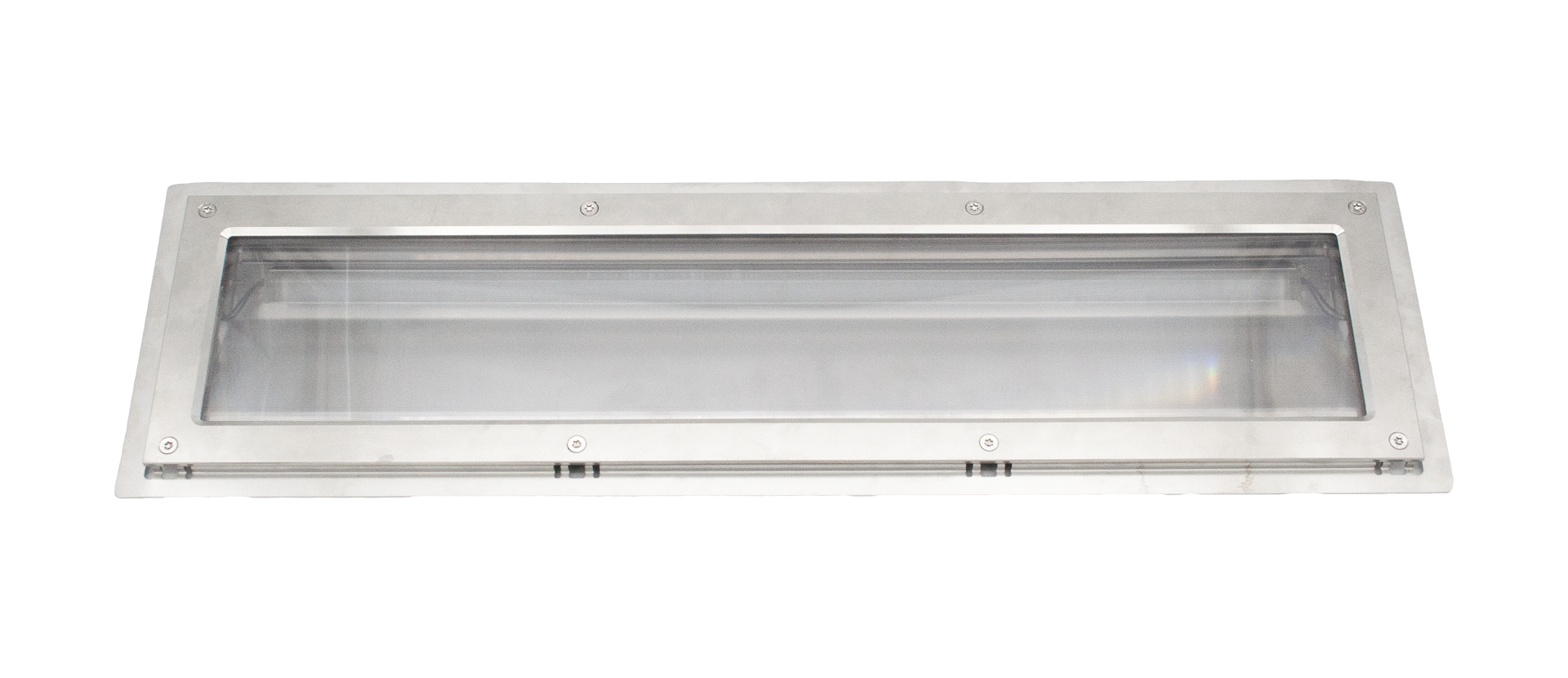

This OWL1 recessed wall light is designed for use in harsh environments such as installation in public escalators at railway stations. Thanks to the fully encapsulated light insert and the use of stainless steel housings, this luminaire is extremely robust and suitable for almost all possible environmental influences. Prismatic discs specially selected for the application ensure that the light is distributed asymmetrically and homogeneously over the surface to be illuminated.
| lifespan | L80B10 60,000h @ 25 ° C |
| Ambient temperature | -25 ... + 45 ° C |
| Storage & transport temperature | -25 ... +60°C |
| nominal voltage | DC 28...30V |
| Housing material | Stainless steel V2A |
| Glow wire resistance | 650 ° C |
| Protection class | III |
| Protection mode | IP67 (light insert) |
| Impact resistance | IK10 |
| Connection type | Connector IP67 |
| Color fidelity | SDCM 3 |
| Colour rendering index | typ. 85 |
| Product Code | emission angle | Light color | Luminous flux | length | width | height | Control | performance recording |
|---|---|---|---|---|---|---|---|---|
| OWL1 FATR DB 302 840 12 |
asymmetrical
(tilt angle: 12°) |
4000 K
|
128 lm | 302 mm | 59 mm | 200 mm | On off | 2.7 W. |
| OWL1 FATR DB 302 840 32 |
asymmetrical
(tilt angle: 32°) |
4000 K
|
120 lm | 302 mm | 59 mm | 200 mm | On off | 2.7 W. |
| OWL1 FATR DB 302 840 62 |
asymmetrical
(tilt angle: 62°) |
4000 K
|
100 lm | 302 mm | 59 mm | 200 mm | On off | 2.7 W. |
| OWL1 FATR DB 462 840 12 |
asymmetrical
(tilt angle: 12°) |
4000 K
|
260 lm | 462 mm | 59 mm | 200 mm | On off | 5.3 W |
| OWL1 FATR DB 462 840 32 |
asymmetrical
(tilt angle: 32°) |
4000 K
|
245 lm | 462 mm | 59 mm | 200 mm | On off | 5.3 W |
| OWL1 FATR DB 462 840 62 |
asymmetrical
(tilt angle: 62°) |
4000 K
|
190 lm | 462 mm | 59 mm | 200 mm | On off | 5.3 W |
| OWL1 FATR DB 792 840 12 |
asymmetrical
(tilt angle: 12°) |
4000 K
|
510 lm | 792 mm | 59 mm | 200 mm | On off | 10,6 W |
| OWL1 FATR DB 792 840 32 |
asymmetrical
(tilt angle: 32°) |
4000 K
|
485 lm | 792 mm | 59 mm | 200 mm | On off | 10,6 W |
| OWL1 FATR DB 792 840 62 |
asymmetrical
(tilt angle: 62°) |
4000 K
|
380 lm | 792 mm | 59 mm | 200 mm | On off | 10,6 W |
