| lifespan | 50,000 h |
| Ambient temperature | -20 ... + 35 ° C |
| Storage & transport temperature | -25 ... + 70 ° C |
| nominal voltage | AC 220 ... 240 V |
| Nominal frequency | 50/60 Hz |
| Weight | 3.4 kg |
| Housing material | aluminum |
| Protection class | I. |
| Protection mode | IP20 (IP44 with safety glass) |
| Color fidelity | SDCM 3 |
| Colour rendering index | typ. 92 |

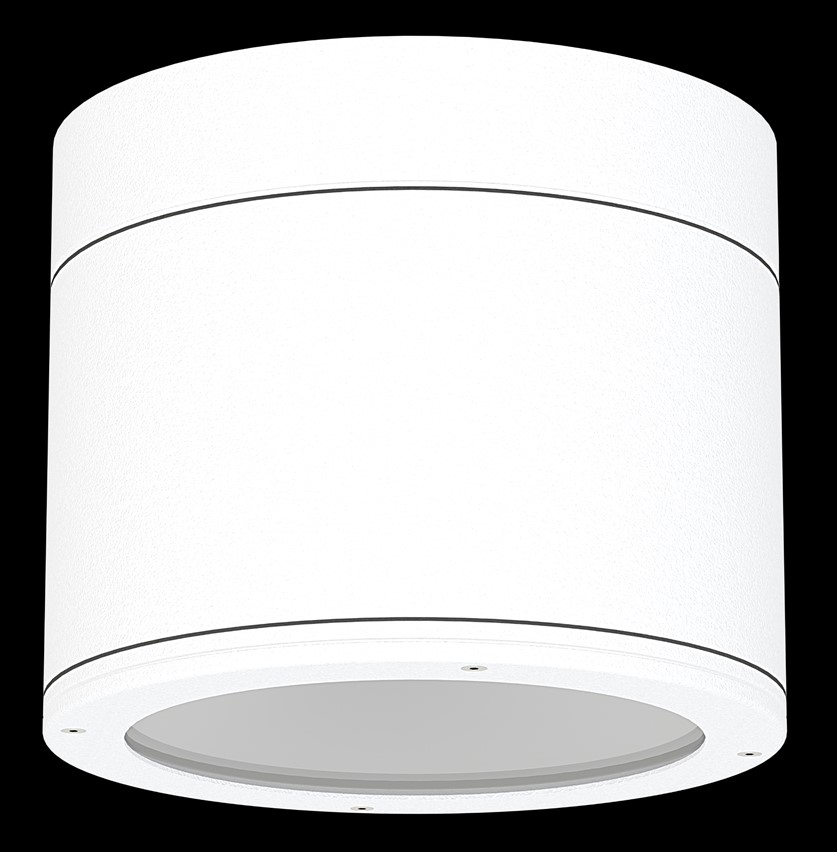

| Product Code | emission angle | Light color | Luminous flux | diameter | height | Control | performance recording |
|---|---|---|---|---|---|---|---|
| DL7 AL315.1 20 930 WH 56 IP20 EA |
56 °
|
3000 K
|
2000 lm | 230 mm | 188 mm | On off | 18.3 W. |
| DL7 AL315.1 20 940 WH 56 IP20 EA |
56 °
|
4000 K
|
2200 lm | 230 mm | 188 mm | On off | 18.3 W. |
| DL7 AL315.1 30 930 WH 56 IP20 EA |
56 °
|
3000 K
|
3040 lm | 230 mm | 188 mm | On off | 28.1 W |
| DL7 AL315.1 30 940 WH 56 IP20 EA |
56 °
|
4000 K
|
3280 lm | 230 mm | 188 mm | On off | 28.1 W |
Also available in tunable white on request.
